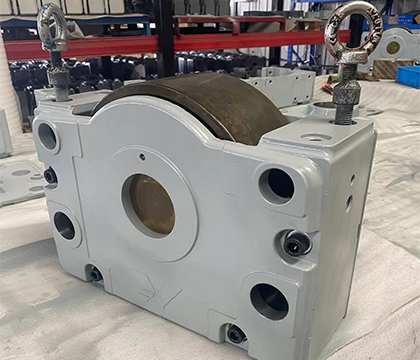

DRS 160 Wheel block are engineered for use in overhead cranes, hoists, and other industrial applications where reliable travel and load handling are essential. Known for their robustness and efficiency, these wheel blocks support seamless movement and contribute to the overall performance of crane systems. DRS 160 wheel blocks can be applied in stacker cranes.

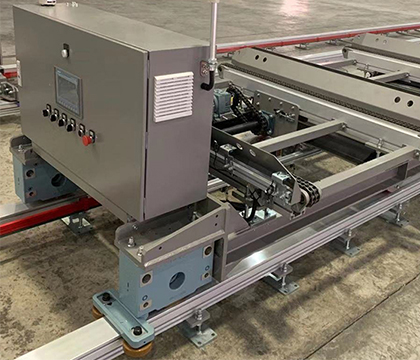

A stacker crane, also known as an automated storage and retrieval system (AS/RS) crane, is a sophisticated piece of warehouse automation equipment designed for efficiently storing and retrieving goods from high-bay storage systems.
Stacker cranes are equipped with DRS traveling wheels that allow them to move horizontally along tracks or rails within the storage area. These wheels enable the crane to access various locations within the warehouse or storage facility.
DRS 160 Wheel Block System Advantages
Housing: High quality thanks to in-house, modern production
Wheels: Maintenance-free anti-friction bearing thanks to lifetime lubrication
Drive: Low-maintenance direct drive (vertical/horizontal) with torque support
Guide rollers and derailment protection: keep the crane on its intended path and prevents deviations that could lead to operational issues.
Temperature range –20 ºC to +40 ºC
Capacity | Weight | Splined hub profile | Bear type | |
DRS 160 wheel blocks | 7 | 26.5 | W35x2x30°x16x7H | 6215-2Z |
Except the DRS 160 wheel blocks, wheel ranges DRS 112, DRS 125, DRS 160, DRS 200, DRS 250, DRS 315, DRS 400, DRS 500.
In addition, DRS wheel blocks system has a lot of applications, e.g. for moving bridge elements, roofs or the sun canopy of the German parliament building in Berlin, as well as operation under extreme conditions in galvanizing facilities or special construction applications.
DRS Wheel Block Systems have been meticulously developed by our team of industry experts, drawing upon years of experience to ensure unparalleled performance and functional reliability. This modular wheel block system presents a swift and cost-effective solution tailored to meet individual requirements. Contact us today!
Contact Shiyang Industrial Machinery to get a tailored DRS wheel block system for cranes, transfer carts, and conveying system.
