The Demag DRS 400 wheel set system is a rail drive assembly consisting of a set of wheels and a support box for carrying loads during movement, up to 30 tons. In addition to being used as a crane accessory, these wheels are also suitable for moving heavy objects in a variety of industrial applications.

The Demag DRS 400 wheel system offers significant advantages from project planning to installation and commissioning. These wheels offer a versatile solution for a wide range of applications, providing excellent performance and maximum load capacity relative to their wheel diameter.

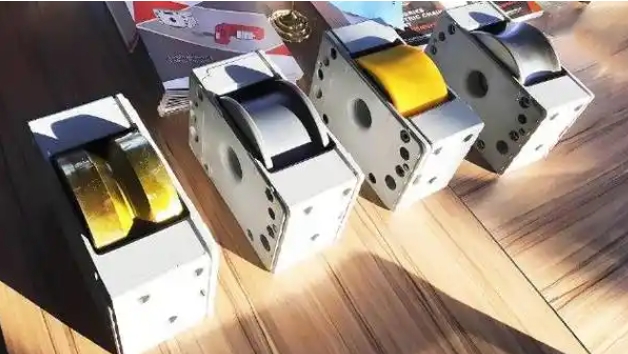

Different wheel types

Demag wheels can be customized according to actual conditions with flangeless with guide wheels, single flange, double flanges and other wheels made of different materials, such as spheroidal-graphite cast iron (GGG 70) wheels, polyurethane-coated wheels, stainless steel wheels, etc.

Precision wheel box

• The ductile iron (GGG 70) housing, which is closed on five sides, protects the wheels from external mechanical influences.

• Any unnecessary housing openings can be sealed with the plugs included in the delivery.

• Anti-rust coating on the wheel housing

• Clean connection ports to avoid production residues that make installation difficult

Precise alignment

• Laser system allows easy and accurate alignment of DRS 400 wheels.

• Pre-installed brackets on the Demag translation wheel housing allow quick and accurate alignment of different types of trolleys or equipment.

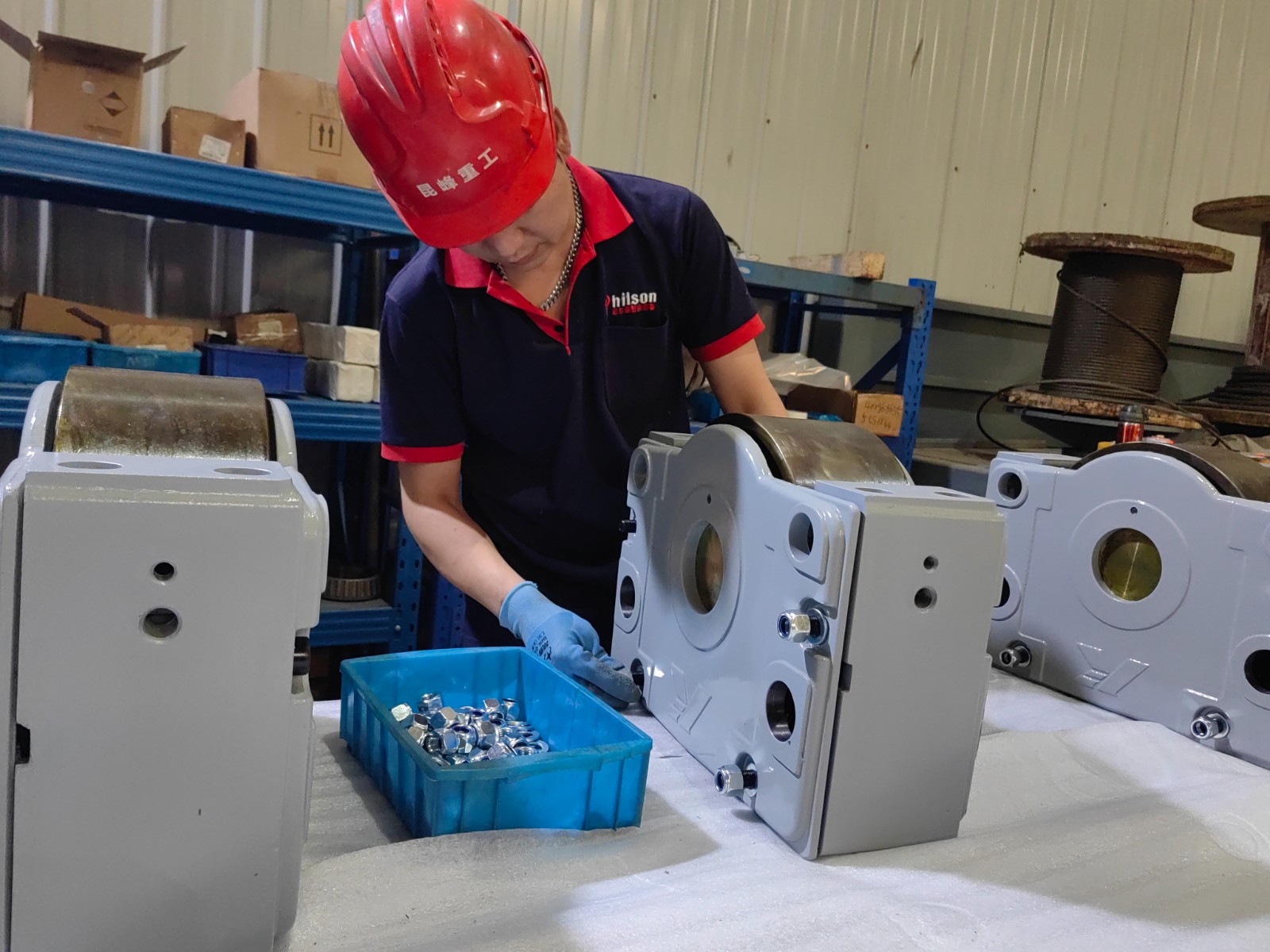

Easy installation and rugged design

• DRS 400 wheels are designed for easy connection to the superstructure, ensuring smooth starting and braking, thereby minimizing runway wear.

Details

• Compact housing design with precise position tolerances.

• All axis dimensions are accurate for seamless integration.

• Special reinforcement ribs are incorporated to enhance rigidity and stability.

In addition to the above advantages, Shiyang factory also provides customized wheel system services. Shiyang can also provide Demag range of DRS 112, DRS 125, DRS 160, DRS 200, DRS 250, DRS 300, DRS 500. Spline shafts, gear motors, bearings and other drive systems match the wheels. With professional design and sales teams, we can provide you with the perfect solution at the lowest cost.
