Tailored DRS Wheel Range China Manufacturer

Tailored DRS Wheel Range China Manufacturer

Description: The DRS wheel features simple installation and alignment, compact dimensions, and multiple connection options. It also offers new efficiency benefits.
Category: Tailored Solutions
Updatetime: 2024-12-23
Details

The DRS wheel features simple installation and alignment, compact dimensions, and multiple connection options. It also offers new efficiency benefits. The range consists of four sizes (112 – 200) that are fully compatible with the previous models. Additionally, there are four wheel blocks (DRS 250 – 500) available, which complement the DRS product range with load capacities of up to 40 tons.

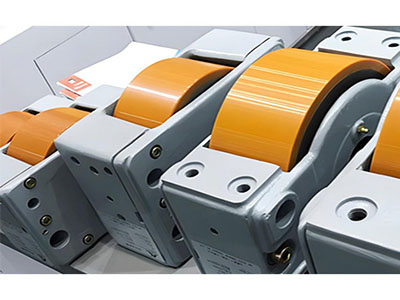

DRS wheel block sets

Advantages of Wheel Block System

1. Rigid design, easy fitting: The housing's tight design and precise geometry ensure easy installation of Shiyang wheel blocks with gentle starting and braking characteristics and high rigidity.

2. Compact structure, saving space: DRS wheel blocks are very compact structure with space-saving pancake gear on request.

3. Reliable, flexible, and custom wheel block available: High quality drives for every situation. Different configurations for connecting as per clients' request. On request, drives equipped with VFD frequency inverter

4. Require little maintenance, maintenance-friendly: The DRS wheel blocks allow for easy removal of components from the front of the block, with maintenance advantages over traditional crane wheels, including bolt fastening, easy operation, no need for realignment, and improved efficiency.

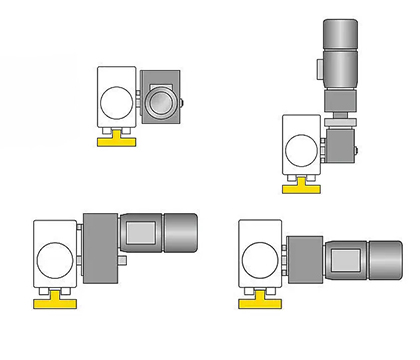

wheel block drive connection variants

Main parameters of Trailer Wheel Blocks

Lifting capacity of crane the wheel block applied: 5- 40 ton

Span of crane the wheel block applied: 10.5m-31.5m

Working class of crane the wheel block applied: A3-A6

Wheel diameter of DRS wheel blocks: 112mm, 125mm, 160mm, 200mm, 250mm, 315mm, 400mm, 500mm, custom available.

Apart from the above options, other components such as materials, shells, bearings, motors, reducers, splined hubs, the wheel treads, wheel installation mechod, are all can be tailored to your demands.

The DRS wheel blocks can be for wheel loads from 5 t to 100 t universally. With many connection various variants, the DRS wheel blocks are prepared mounting surfaces for virtually any connection: from top and end connection arrangements with bolted and welded connection elements, to side and pin connection arrangements.

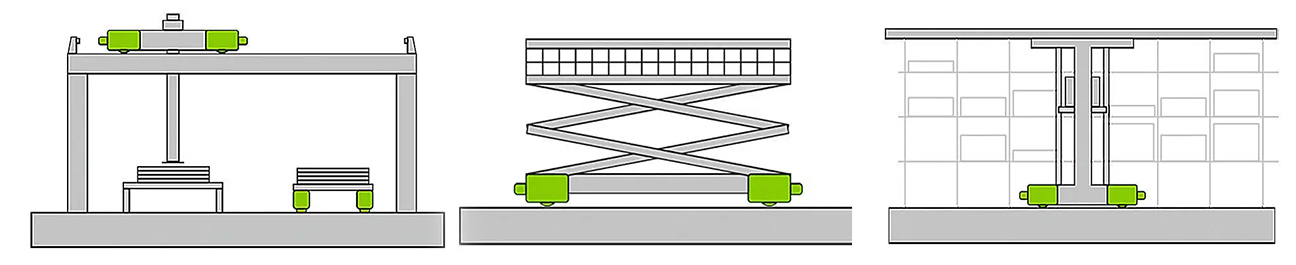

DRS wheels industrial applications

Shiyang specializes in DRS wheel blocks and has over 10 years of experience. Our full-service approach is our advantage, offering professional design services, top-notch products in short lead time, comprehensive after-sales service, and we have a dedicated maintenance team.
