DRS Wheel Block System for Warehouse Pallet Shuttles

DRS Wheel Block System for Warehouse Pallet Shuttles

Description: DRS wheel block systems are used to help pallet travel along tracks or rails, enabling them to efficiently transport pallets to different locations in a warehouse or storage area.
Category: Conveying System
Updatetime: 2024-12-23
Details

Do you know what makes pallet shuttles effective in moving pallets? The key lies in their wheels, which navigate along tracks or rails to ensure smooth and precise movement.

Pallet shuttles are automated systems that move pallets within storage racks. DRS wheel block systems are used to help pallet travel along tracks or rails, enabling them to efficiently transport pallets to different locations in a warehouse or storage area. The wheels are crucial for smooth, precise movement and help in managing the load during transit.

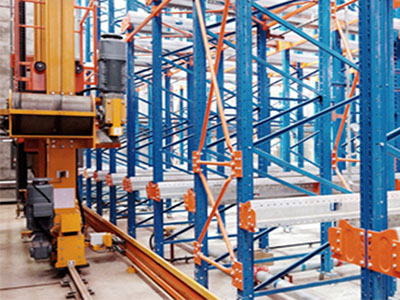

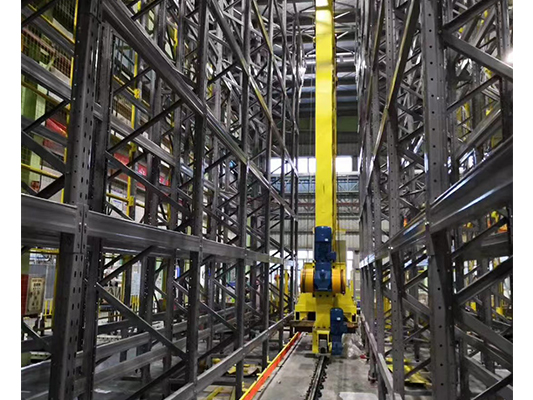

DRS wheel blocks for pallet shuttle traveling

How much do you know the DRS wheel block system in Warehouse?

A wheel block system is a rail-mounted crane component that comprises a set of wheels and a frame to support the load during movement. The system can handle loads up to 40 tons, and the wheels can have a diameter of up to 500 mm. Besides crane accessories, the wheels can also be deployed for moving heavy loads. For example, DRS Wheel block system for storage system with transverse conveyor: drive solution with central drive unit and DRS wheel block blocks. And in the beverage industry warehouse, drive system DRS wheel block help distribution carriage for pallets in the store

DRS 160, DRS 200, DRS 250 are most choice for most pallet shuttles. They features different wheel diameters but have a wide range of load capacity range from 26,500 kg to 41,500 kg. In addition, splined hubs and bears can shared. For more details about DRS wheel block system, please feel free to contact Shiyang Industrial Machinery.


Capacity
(ton)

Weight
(kg)

Splined hub profile
DIN 5480

Bear type

DRS 112 wheel block system

2.75

10

W30x1.25x30°x22x7H

6207-2Z

DRS 125 wheel block system

5

15

W30x1.25x30°x22x7H

6211-2Z

DRS 160 wheel block system

7

26.5

W35x2x30°x16x7H

6215-2Z

DRS 200 wheel block system

10

41.5

W50x2x30°x24x7H

6218-2Z

DRS 250 wheel block system

10

41

W65x2x30°x31x7H

32018X

DRS 315 wheel block system

22

130

W75x3x30°x24x7H

33022

DRS 400 wheel block system

30

220

W90x3x30°x28x7H

33024

DRS 500 wheel block system

40

380

W110x3x30°x35x7H

3302X

We committed to provide full range of DRS wheel block systems, including the splined hubs and bearings at a good price. In addition, if you are looking for heavy duty wheel sets for your equipment, consider partnering with Shiyang. Our team of experts are ready to help you identify the most suitable wheel system solution to meet your specific requirements and ensure the efficiency and safety of your material traveling processes.
